Outdoor WPC wall panel

Core Technology: High-performance composite, co-extruded with a full-cap protective polymer cladding.

Panel Dimensions: 8.62 in × 1.02 in × 114.17 in (0.72 ft × 0.09 ft × 9.51 ft)

Profile: Hollow multi-chamber design with an integrated tongue-and-groove locking system.

Weight: Approx. 1.14 – 2.02 lb per linear foot (varies with panel thickness).

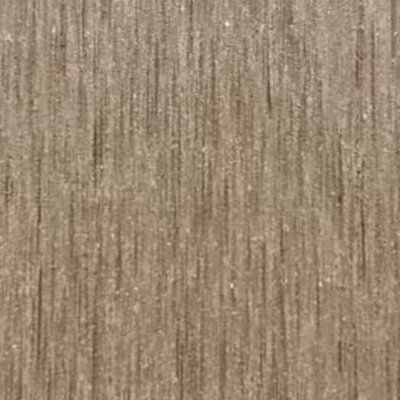

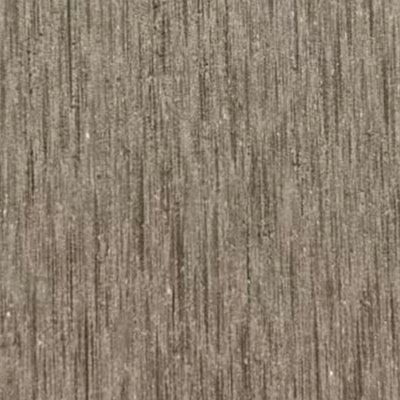

Surface Finish: Deep embossed wood grain texture, available in full-body color or co-extruded protective color layer.

Standard Color Range: Wood Tones (Dark Oak, Teak, Grey Wood, Redwood), Solid Colors (Black, White, Dark Grey).

Impact Strength (73°F): ≥ 25 kJ/m²

Water Absorption (24 hrs): ≤ 0.5%

Linear Expansion (After Water Immersion): ≤ 0.3%

Mounting Method: Hidden clip system (stainless steel or aluminum alloy clips) installed on vertical or horizontal aluminum or treated wood battens.

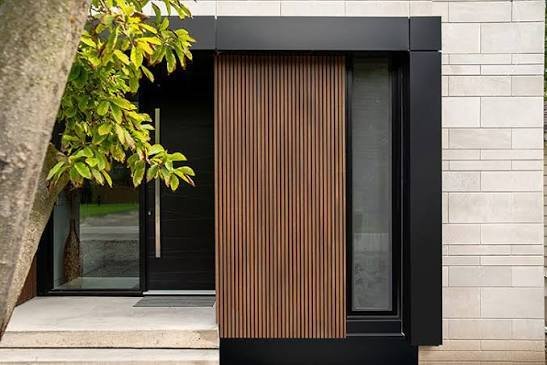

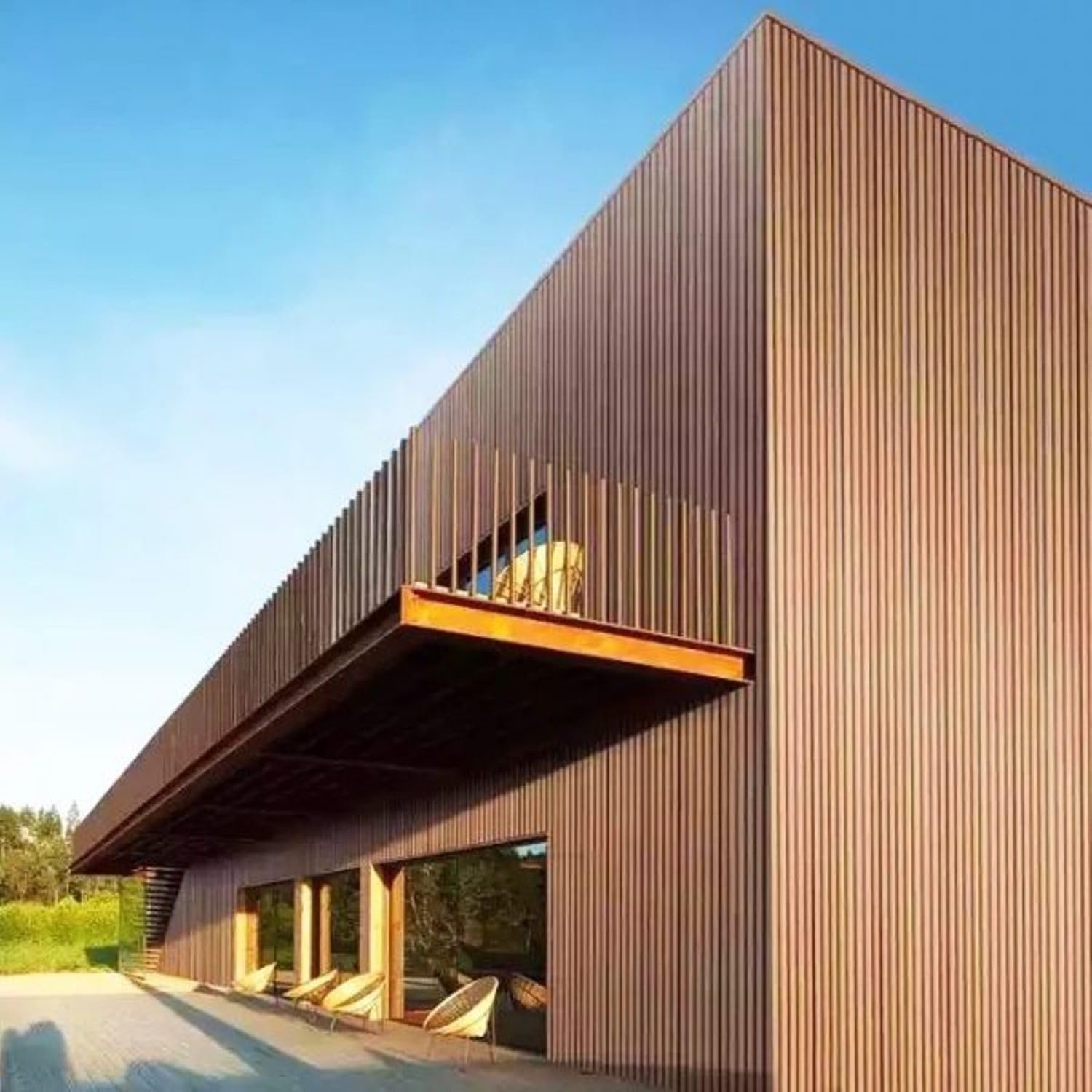

Applications: Ventilated exterior wall cladding for residential, commercial, and public buildings.
